芯達茂XD020H065CX1H3

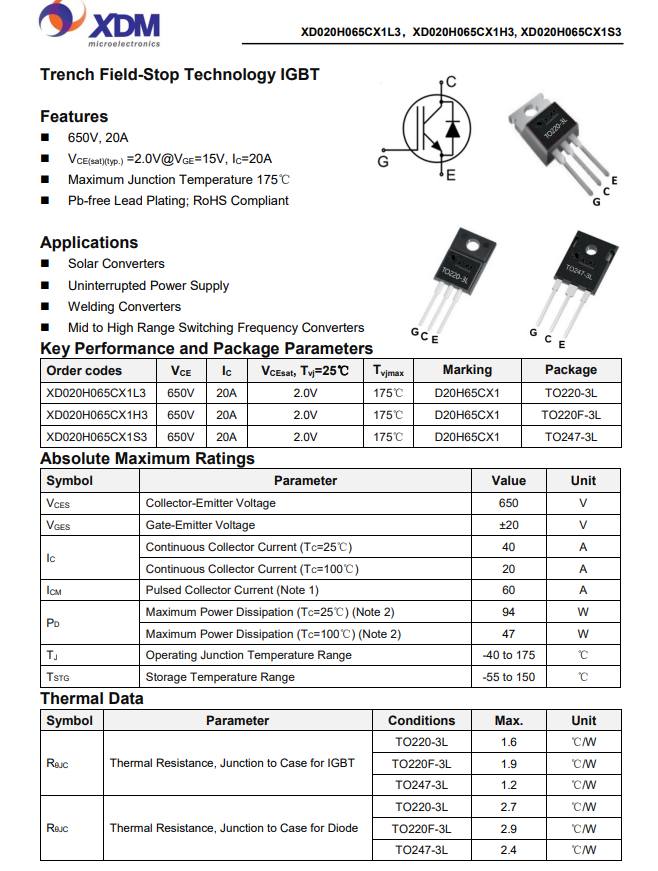

Trench Field-Stop Technology IGBT Features
? 650V, 20A
? VCE(sat)(typ.) =2.0V@VGE=15V, IC=20A
? Maximum Junction Temperature 175℃
? Pb-free Lead Plating; RoHS Compliant Applications
? Solar Converters
? Uninterrupted Power Supply
? Welding Converters
? Mid to High Range Switching Frequency Converters
